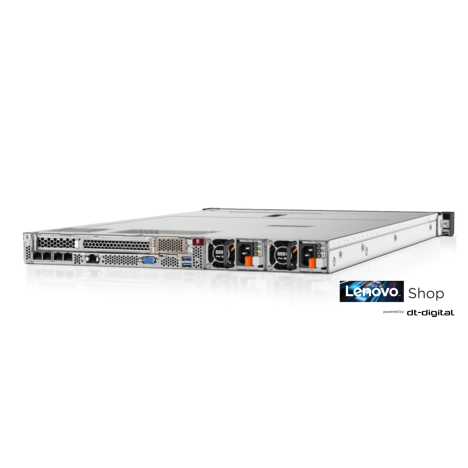

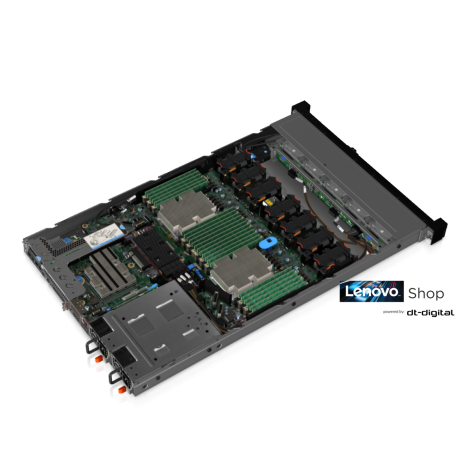

Lenovo ThinkSystem SR630 7X02A0F4EA
PN: 7X02A0F4EA
EAN: 889488540266
Dostupnosť tovaru (sklad):
Na objednávku / informujte sa
Dostupnosť na predajni:
0
(ks)
Lenovo ThinkSystem SR630 1U Rack Intel Xeon Silver 4210R 10C up to 3.2GHz 32GB 8x 2.5inch Hot Swap SAS/SATA RAID 930-8i 2GB Flash Matrox G200eR2 16MB Without Network Adapter 750W Hot Swap
Specifications
| Form Factor/Height | 1U rack server |
| Processor | Up to 2 second-generation Intel® Xeon® Platinum processors, up to 205W |
| Memory | Up to 7.5TB in 24x slots, using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4 |
| Expansion Slots | Up to 4x PCIe 3.0 slots (with two CPUs), including 1x dedicated PCIe for RAID adapter |
| Drive Bays | Up to 12 bays (includes 4x AnyBay): 3.5": 4x hot-swap SAS/SATA; 2.5": 4x hot-swap AnyBay + 6x hot-swap SAS/SATA + 2x rear; or 8x hot-swap SAS/SATA; or 10x hot-swap U.2; plus up to 2x mirrored M.2 boot |
| HBA/RAID Support | HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs |
| Security and Availability | TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port |
| Network Interface | 2/4-port 1GbE LOM; 2/4-port 10GbE LOM with Base-T or SFP+; 1x dedicated 1GbE management port |
| Power | 2x hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium |
| Systems Management | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| OSes Supported | Microsoft, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-/3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
Processor
1x Xeon Silver 4110 8C/2.1GHz/11MB/85W/DDR4-2400
Memory
1x 16GB RDIMM DDR4-2666 (2Rx8)
Storage Controller
None
Chassis
24x 2.5"
Disk Bays
None
Disks
None
M.2 Drives
None
PCIe Flash Adapter
None
GPU
None
Onboard Networking Ports
1x Mgmt
-
Lenovo ThinkSystem SR630
Váha tovaru: 0.0000 kg
